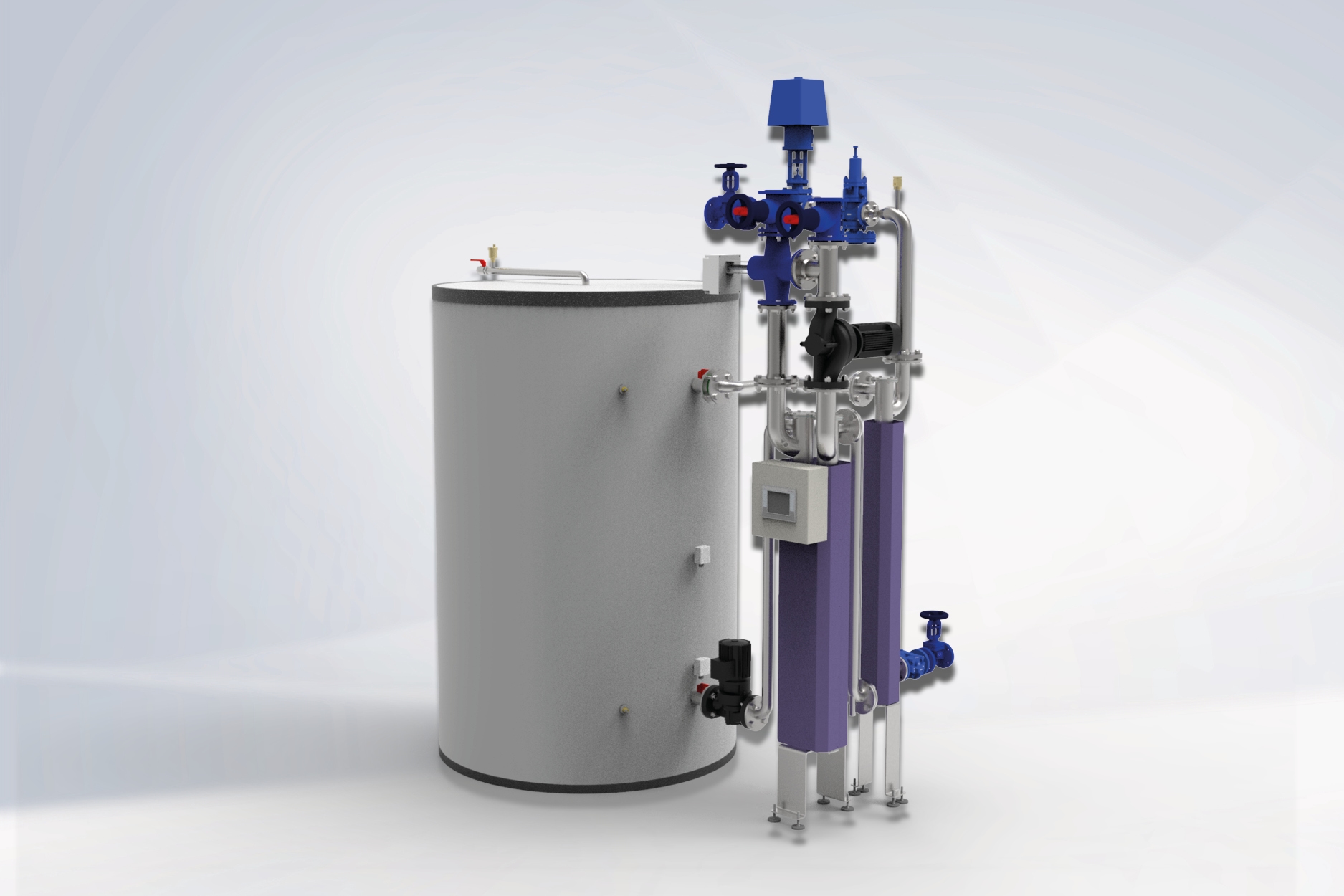

Ecotherm EHHE - hybrid water heater 50-2.000 kW

The EcoTherm EHHE is a hybrid high capacity water heater for water/water or steam/water operation with two primary heat sources and one secondary connection

Multiple-stage heating of water in two shell and tube heat exchangers by individual and independent primary heat sources.

Például: Például hulladékhő vagy alacsony hőmérsékletű hőszivattyú előmelegíti a vizet, és egy másik elsődleges forrás, például melegvízkazán vagy gőz segítségével melegíti fel a végső hőmérsékletre

Efficient utilizing of the available heat sources with maximum hygiene since no stagnation of water with less than 60°C will occur.

Highly efficient heat transfer and most extensive prevention of liming and scaling through self-cleaning effect of patented shell & tube heat exchangers with free floating turbulator rods made of stainless steel.

Features:

■ 80 mm insulation up to 1.000 liters and 100 mm above. 100% recyclable

■ Possibility of thermal disinfection of the water at >70 °C in the second heat exchanger

■ Fibre-Fleece insulation of storage tank with robust outer sheathing made of PP (RAL 7037)

Example:

■ Pre-heating of the water to e.g. 45°C by utilizing e.g. a heat pump or heat recovery of a chiller or any other waste heat

■ Systems can be designed that the entire heating can be accomplished by the second primary source only, if the first primary source is not available
