Hoval EP/ EFHK-E/C electric heating element (2,35 - 9,0 kW)

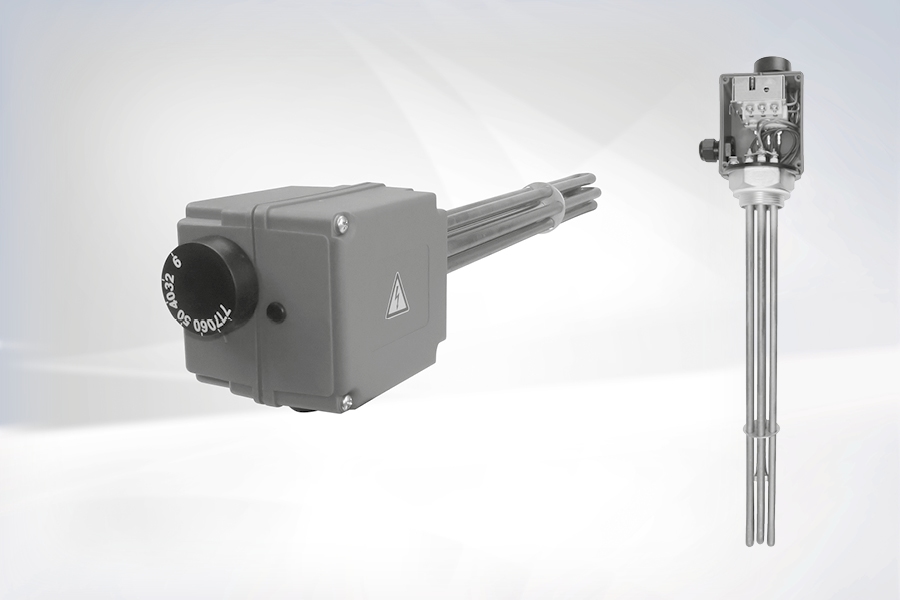

Screw-in electric heating element EP 2.5-7.5 is an electric heating element consists of three U-shaped round heating rods and a thermostat protection tube mounted in a 1½″ brass nipple, a flat seal is included in the scope of delivery.

Due to the insulated installation of the round heating rods, the units are also suitable for enamelled calorifiers. The unheated zone is 150 mm for all outputs.

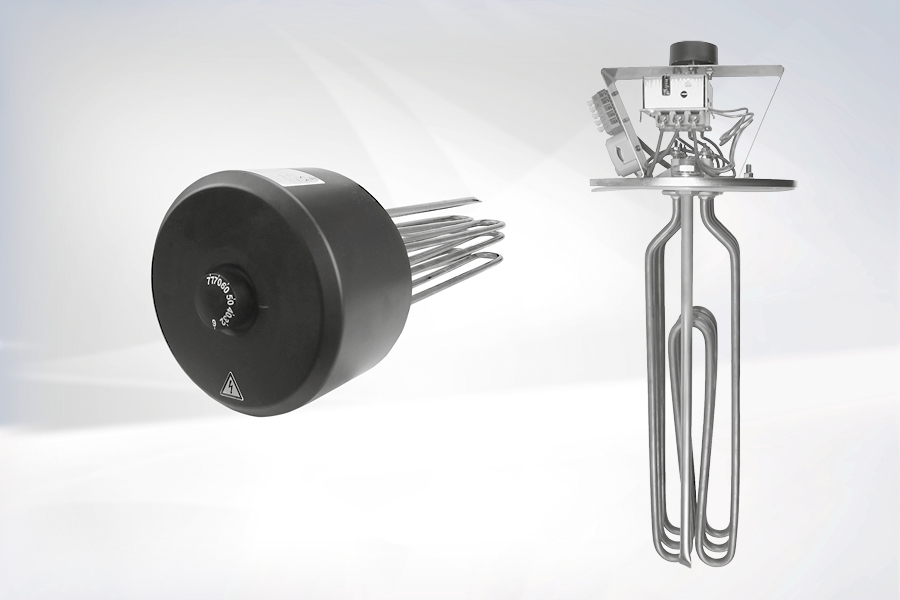

Flange-mounted electric heating element EFHK-E/C 4-9 is an electric heating element consists of three U-shaped round heating rods, each pressed into a press nipple. These are screwed onto a stainless steel flange with thermostat protection tube, a flange seal (EPDM) is included in the scope of delivery.

A food-safe plastic disc (PVDF) serves as insulation. The unheated zone is 100 mm for all outputs.

Characteristics:

■ TR: Electromechanical temperature controller

■ STB: Electromechanical safety temperature limiter

■ Rotary knob with temperature display

■ Incoloy® alloy 825 heating rods

■ Connection 3 x 400 V

■ Not suitable for exclusively electric heating (risk of limescale buildup)
