Hoval EP PV / EFHK-E/C PV photovoltaic electric heating element (3,5 - 5,8 kW)

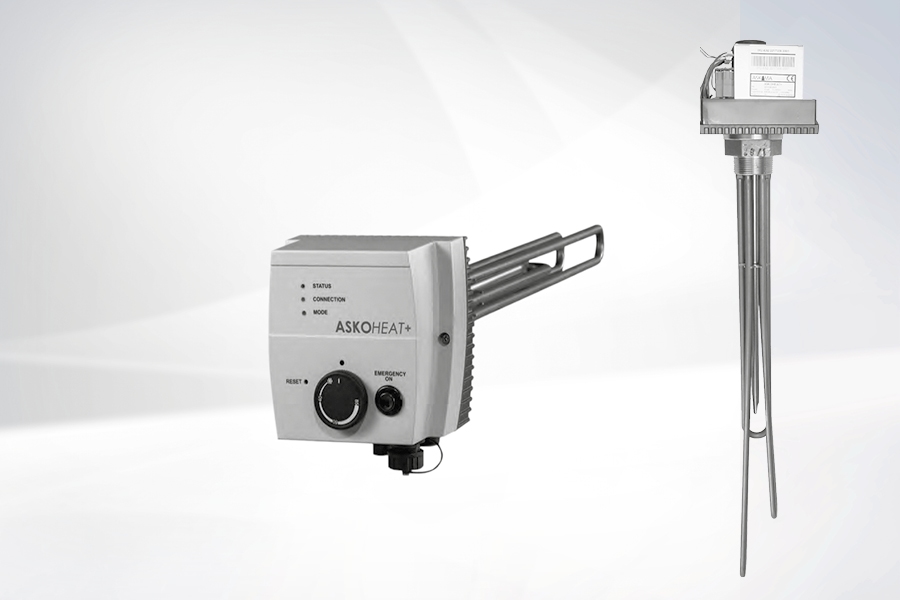

The Hoval EP (3,5-5,8) PV is a photovoltaic screw-in electric heating element. The electric heating element consists of three U-shaped round heating rods, which are mounted in a conical brass nipple 1½″ insulated by means of food-safe plastic sleeves.

Thanks to the insulated installation of the round heating rods, the units are also suitable for enamelled calorifiers.

The unheated zone is 150 mm for all outputs.

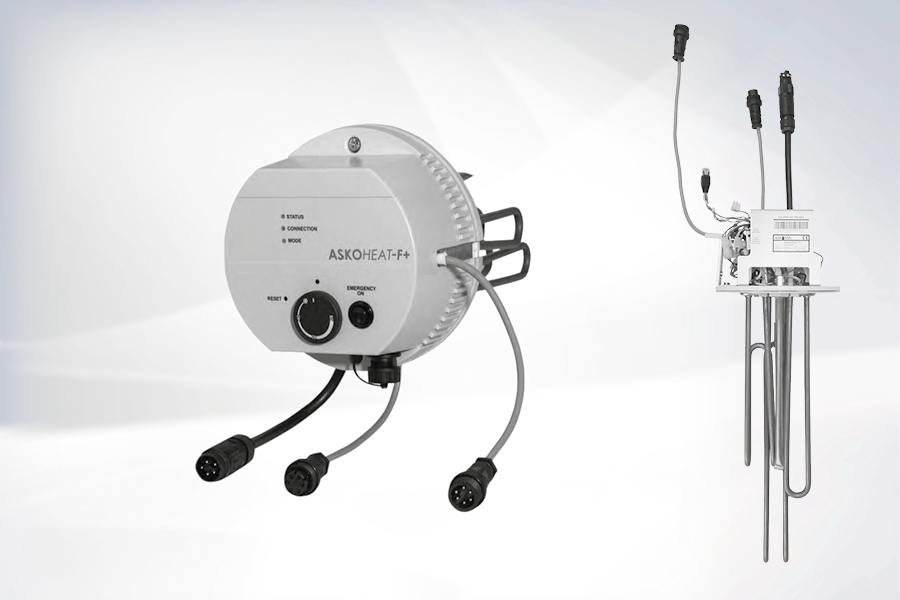

The EFHK-E/C (3,5-5,8) PV is a photovoltaic screw-in electric heating element with RemoteControl EP 3.5-9.0 The electric heating element consists of three U-shaped round heating rods, each pressed into a press nipple. These are screwed with the immersion sleeve onto a steel flange. A food-safe plastic disc serves as insulation.

The unheated zone is 70 mm for all outputs.

Application:

■ As supplementary heating of service and heating water in photovoltaic systems

■ For optimisation of the internal consumption of PV energy

■ To minimise the switch-ons/cycles of the main heat generator e.g. exclusively hot water production in summer
