S (200-5000) PM, PF, PR, PRR

The S (500-5000) PM, PF, PR, PRR heating buffer tank for hot water central heating (for solid or oil-fired boilers, heat pumps, solar systems, gas or electric instantaneous water heaters). The buffer tanks can be connected in parallel.

Can also be used as cold water tank for cooling (at 3 bar operating or system pressure) and heat recovery in industrial systems (the appropriate Armaflex insulation must be purchased separately).

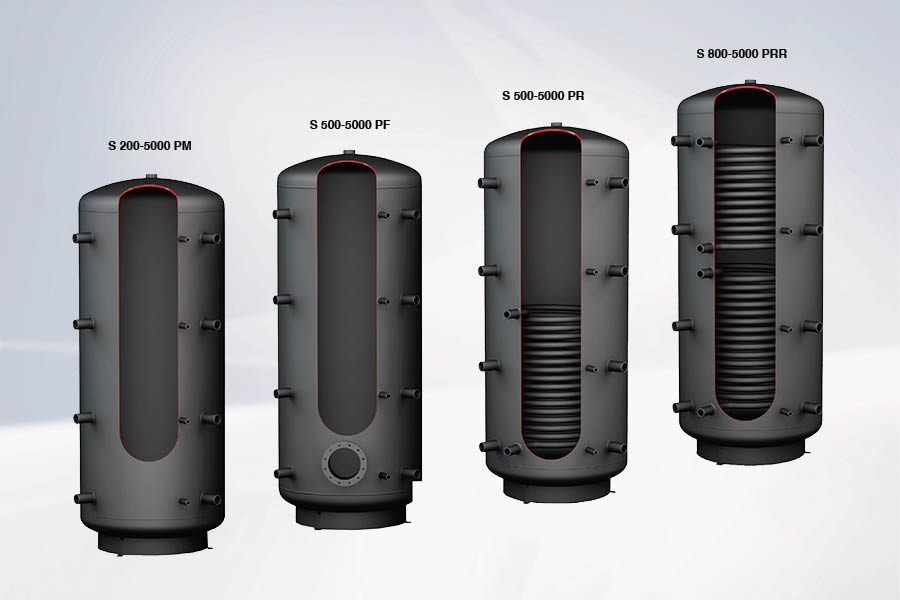

PF: buffer tank PM with flange D 240 PM: buffer tank with 6/4‘‘ connection sleeves PR/PRR: buffer tank PM with turbular heat excanger

Operating pressure: 4 bar in the buffer tank, 10 bar in the pipe register (PR/PRR).

Test pressure: 6 bar in the buffer tank, 15 bar in the pipe register (PR/PRR).

Operating temperature 95 °C, 110 °C in the pipe register.

Features:

■ 100 mm ECO SKIN insulation

■ Made of quality steel St 37-2

■ Large-surface pipe registers on PR/PRR types

■ 240 mm flange on PF types for the installation of a finned tube heat exchanger or a built-in heater

■ Powder coating outside (colour variations) up to 2000 litres

■ Rust-proof coating outside (from 3000 litres)
