S (1500,2000), (1500,2000) S, (1500,2000) P

The S (1500-2000), ... S, ... P are special, large-volume storage tanks with optimal corrosion protection; enamelled steel inner boiler in accordance with DIN 4753.

The S (1500-2000) P is a storage tank with flange and built-in cathodic protection anode. Operating pressure: 8 bar, operating temperature of storage tank: 95 °C.

The S (1500-2000) is a storage tank with register and built-in external current anode. Operating pressure: tank max. 8 bar, heating coil max. 10 bar. Operating temperature of storage tank: 95 °C, of heat exchanger: 110 °C.

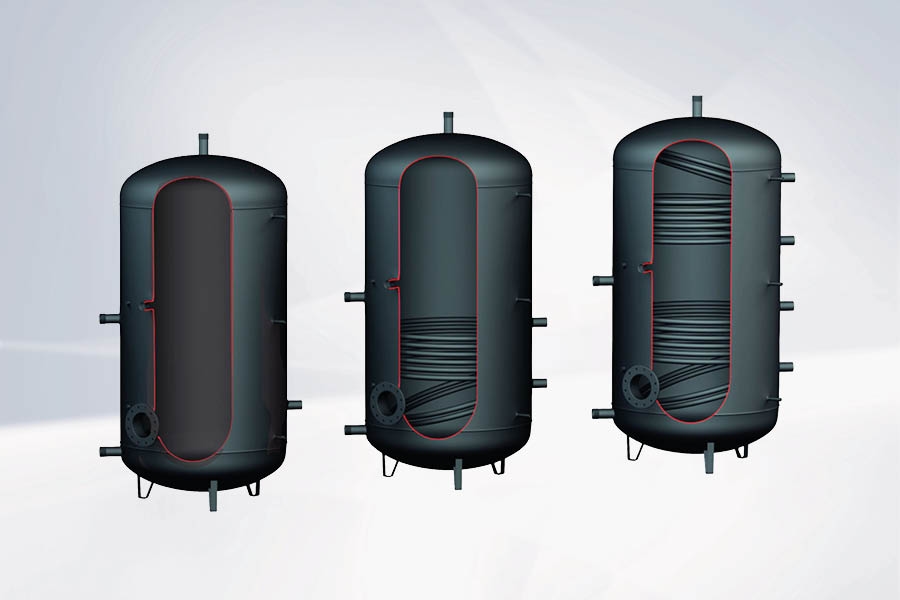

These floor-standing storage tanks have large-area heat exchangers for bivalent or trivalent operation with heating , solar , heat pump or district heating connections. The lower heat exchanger, which is drawn into the floor, improves efficiency and ensures optimum heating of the floor, thereby destroying any bacteria (legionella) that may have been introduced with the cold water.

The S (1500-2000) S is a storage tank with two registers and built-in external current anode. Operating pressure: tank max. 8 bar, heating coil max. 10 bar. Operating temperature of storage tank: 95 °C, of heat exchanger: 110 °C.

These floor-standing storage tanks have large-area heat exchangers for bivalent or trivalent operation with heating , solar , heat pump or district heating connections. The two heat exchangers are welded directly into the boiler and enamelled.

Features:

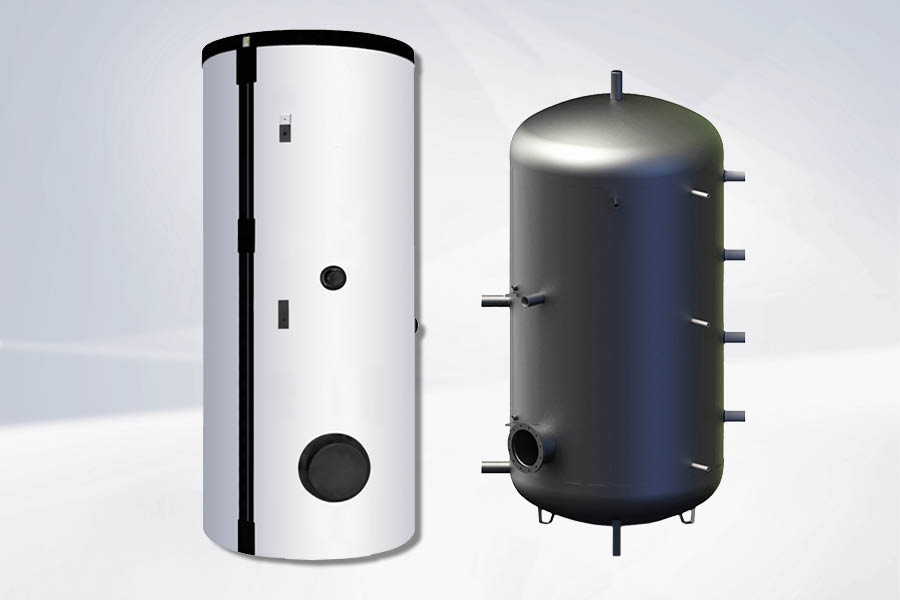

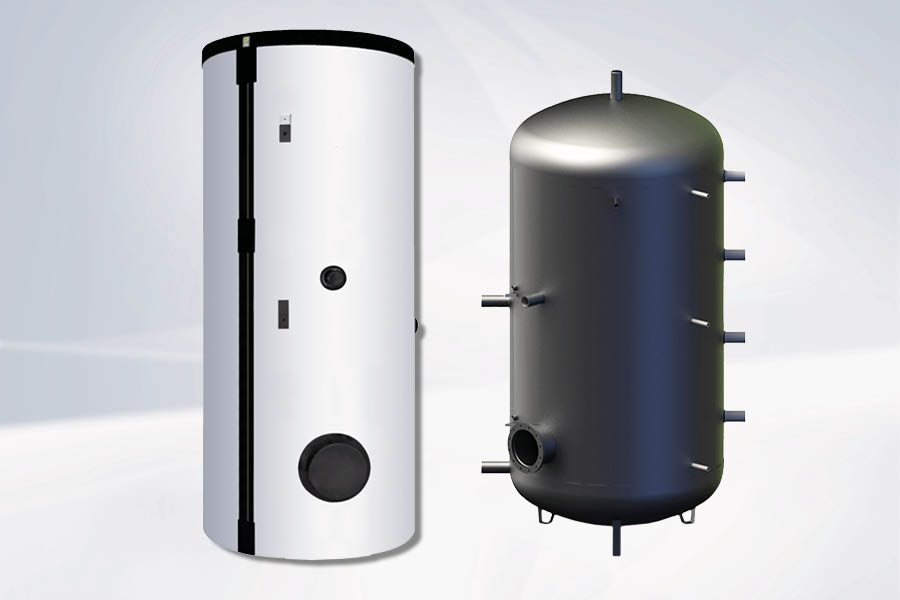

■ The tank is primed on the outside and can be insulated afterwards; the corresponding energy-saving 100 mm ECO SKIN 2.0 insulation must be ordered separately.

■ Three sensor tubes are attached along the boiler jacket for control purposes.

■ For inspection and cleaning purposes, as well as for combination with a finned tube heat exchanger or a flange-mounted heater, this solar storage tank is equipped with a 240 mm Ø side flange.

■ A screw-in heating element can be installed in a 1 ½" socket as additional or backup heating.
