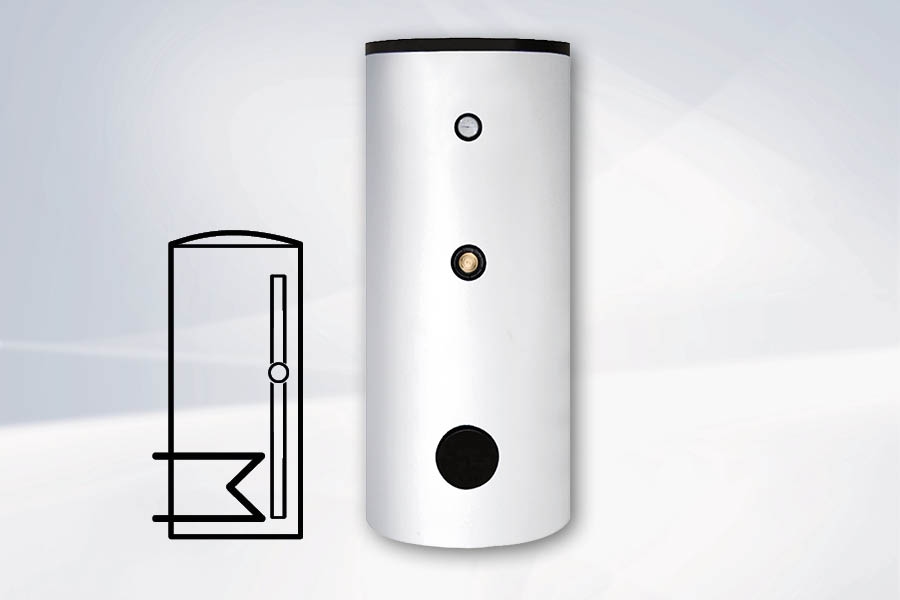

S (160-500)
Enamelled DHW tank with one heat exchanger (160-500 litres)

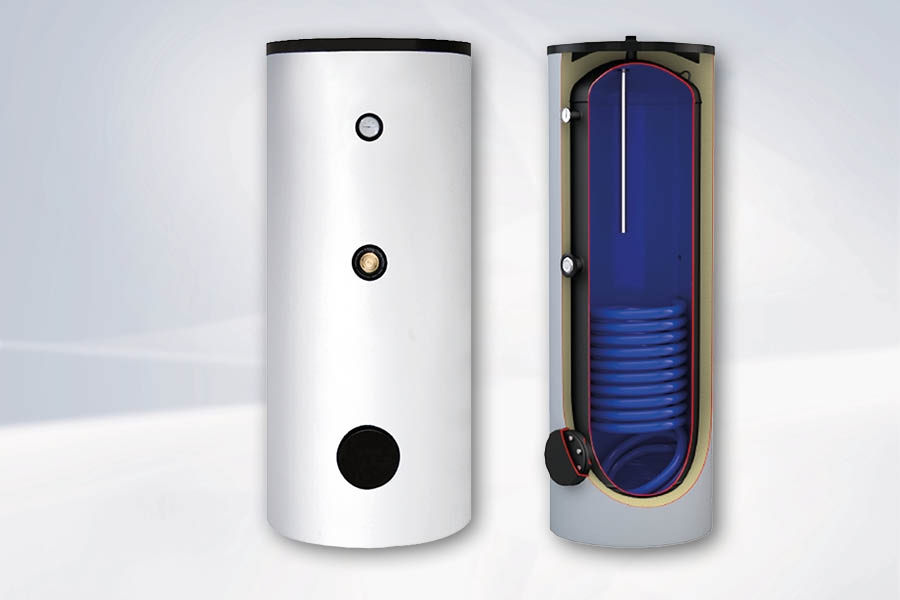

The S (160-500) is a DHW tank with smooth-tube heat exchanger. Enamelled, corrosion-resistant and thermally insulated, with welded high-performance smooth-surfaced pipe coil (insensitive to limescale).
Hot water outlet at the top, which guarantees continuous deaeration.
Tank operating pressure: 10 bar, heating coil operating pressure: 10 bar.
The product range with different heat exchange surfaces offers the right tank for every application. Cost-effective insulation, large heating coils and corrosion-resistant enamel ensure a long service life.
Advantages:
■ Enclosed foil jacket, thus reduced stock-keeping.
■ Thermometer, blind flange (D 180 mm, DN 110) and flange insulation hood, fitted at the factory.
■ 6/4" sleeve for SH-type threaded radiator for electric reheating (closed).
■ Sensor positioning by means of immersion tube.
■ High-quality PU insulation, 100% CFC-free, 50 mm.
