Parat High voltage elektrode boiler

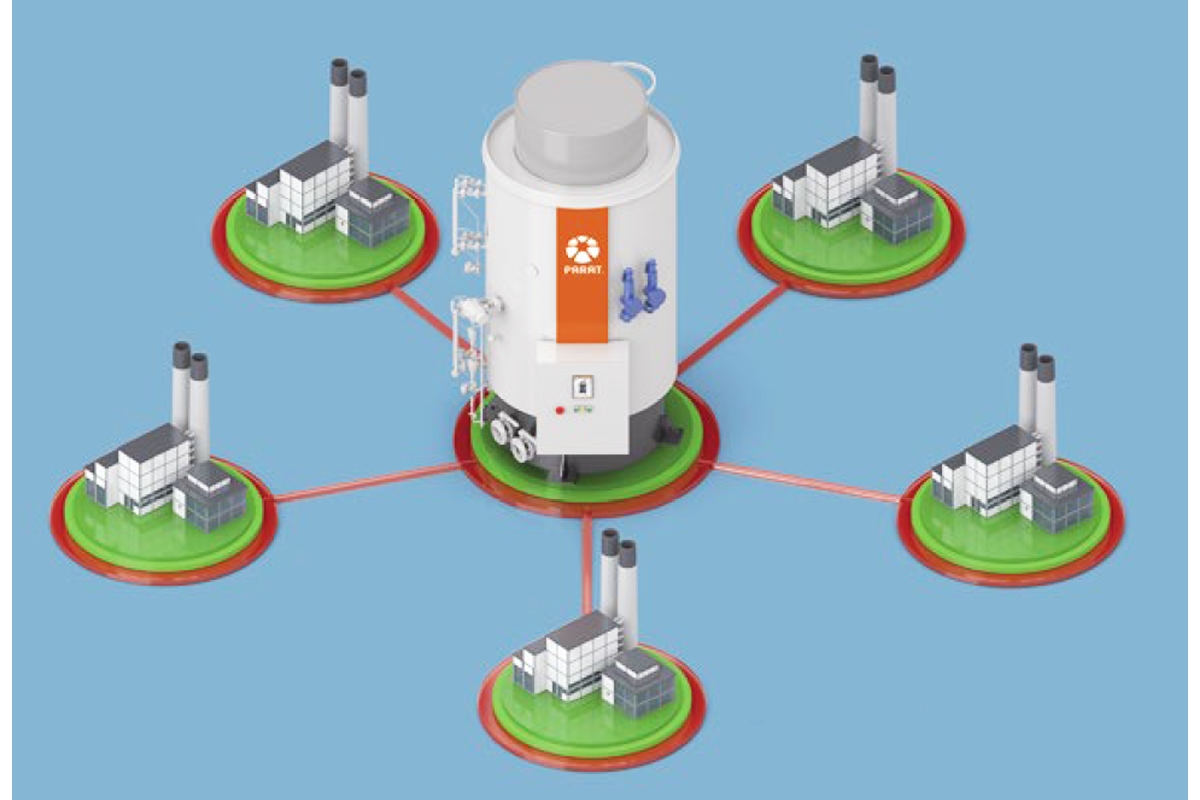

The High voltage hot water and/or steam Electrode Boiler for steam grids and district heating networks

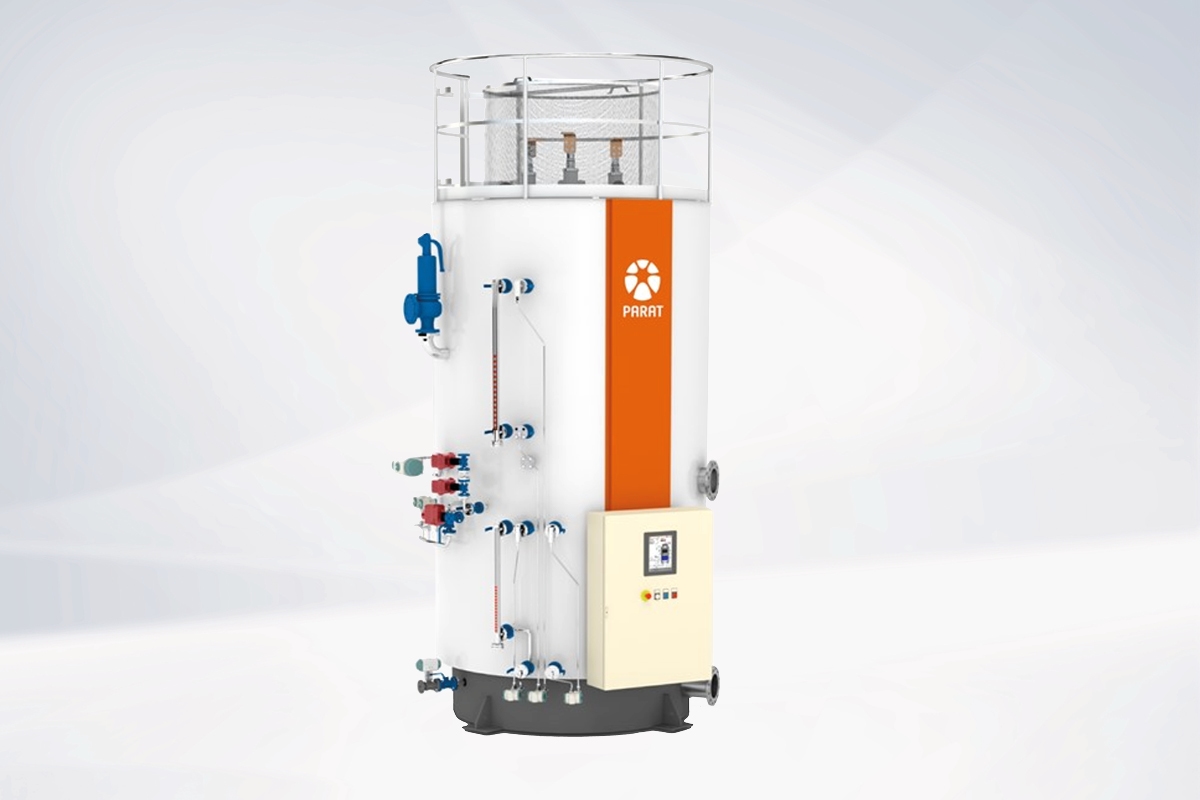

Steam solutions: The PARAT Electrode Boiler is the world leading solution for High Voltage Electrode Steam Boilers. With steam pressure range of 6 - 85 barg and capacity up to 75 MW, you have the solutions for small and large capacity steam production.

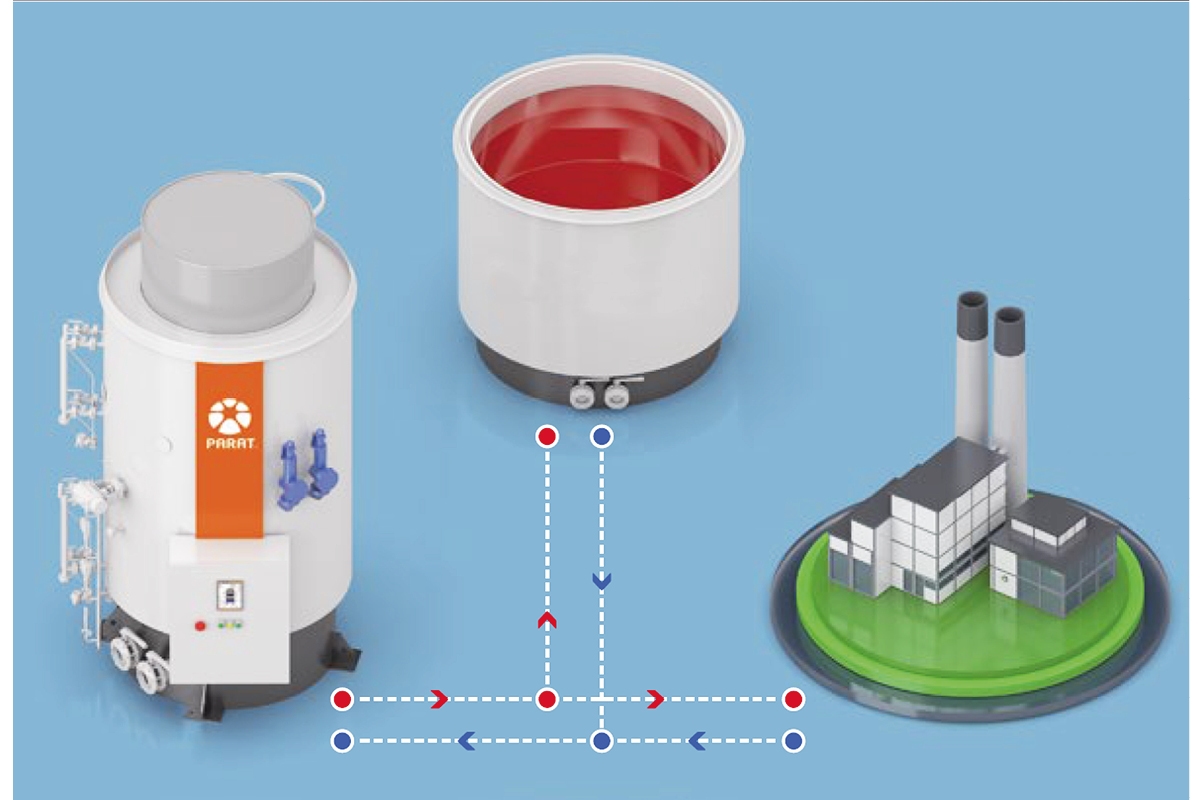

Hot water solutions: A district heating network will always have the possibility to receive excess power from renewable energy. This is the perfect boiler to replace your fossil fuel hot water boilers with clean electrical heat.

Combined Hot Water & Steam: The PARAT Electrode boiler can be delivered as a Combined Hot Water and Steam boiler in one unit (patent pending), with automatic switch of heat mode. This makes the boiler super flexible for every heating central with the need for both hot water and steam.

Super heating: Electrical steam superheaters can be delivered separately with low voltage supplyk.

Before delivery, the boiler is tested with all turnkey equipment, primary circuit and PLC system, thus reducing installation time.

Advantages:

■ High-Pressure Steam up to 85 barg

■ Zero-Load

■ Combined Hot Water & Steam in one unit

■ From cold to full load in less than 5 minutes

■ 30 seconds from minimum to full load

■ No earth current

■ Compact design – up to 75 MW in one unit

■ No separate transformer required

■ No Electrode wear
